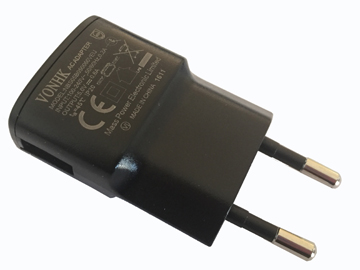

SPS WALL-MOUNT
 SIZE:49.76*19*35.3mm 5W KSAS SERIES
EXTERNAL POWER SUPPLIES
KEY FEATURES
light,ultra slim,sleek,compact design (EU,UL,UK,SAA and CCC etc.)
output mode :DC CORD and USB female socket
green power, full complies with DOE VI,ERP 2016 energy efficiency level VI
high power density
extra safe design, have got their respective safety approvals (EU,UL,UK,SAA and CCC etc.)
completed protect function
KEY APPLICATIONS
Audio& Video product
Mobile devices
POS machine
set-top box
ADSL
1.INPUT
input voltage:90~264VAC
frequency: 47~50/60~63Hz
input current:0.18A( Max)100/240VAC
inrush current:100VAC full load,Max 20A
240VAC full load, Max 30A
leakage current:Max 0.25mA
2.OUTPUT
over voltage protection:Vovp less than or equal 1.5 times output voltage
over current protection:at 110~200% rated load and Auto-recovery
short circuit protection:at output
operating temperature:0~50
operating humidity: 10~90% RH
storing temperature:-20~80
3.SAFETY STANDARDS
information technology equipment
IEC/EN 60950-1,UL 60950-1,CSA C22.2
EN61558,GB4943,AS/NAS61558
J60950-1,K60950-1,IEC60950-1
4.CERTIFICATES AND APPROVALS
CB,GS,CE,UL,CCC,FCC,,TUV,KCC.PSE,DOFT
5.EMI EMISSION
radiation test & conduction test:EN 55022/FCC part 15
harmonic test:EN 61000-3-2
flicker test:EN 61000-3-3
7.EMS IMMUNITY
ESD test: EN 61000-4-2
RS test: EN 61000-4-3
EFT test:EN 61000-4-4
Surge test: EN 61000-4-5
CS test: EN 61000-4-6
DIP test: EN 61000-4-11
CERTIFICATES AND APPROVALS
|
